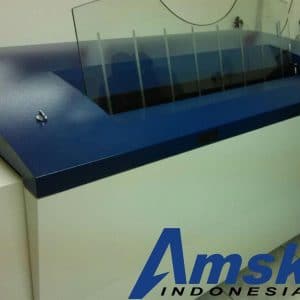

Amsky Ausetter 448

  • 1/2 Plano
  • 48 Channel Laser
  • Auto Focus

Description

Mesin CTCP Amsky Ausetter 448 ukuran 1/2 plano dengan 48 channel laser, lebih stabil dan presisi.

  • Tipe: Ausetter 448
  • Exposing Method: External Drum
  • Imaging System: 48-channel (Discrete 400-410nm laser)
  • Output speed: 28 plates/hour (800 x 600 mm, 2.400 dpi)
  • Plate Size: Max. 800 x 660 mm, Min. 400 x 300 mm
  • Exposing Size: Max. 800 x 646 mm
  • Media Type: UV plate, high-sensitive PS plate
  • Plate Thickness: 0.15 mm – 0.3 mm
  • Resolutions: 2.400 dpi
  • Repeatablity: ±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
  • Interface: USB 2.0/USB 3.0 (Recommended option is USB 2.0)
  • Plate Loading: First manual, then autoload
  • Net Weight: 800 Kg
  • Device Size: 1.900 × 1.200 × 1.000 mm (W × D × H)
  • Power supply:  Single phase; 200V – 240V; Max power (Peak value): 4KW
  • Environment: Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%
